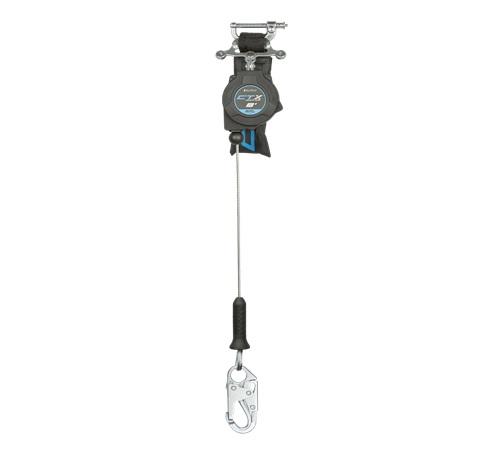

The 8’ CTX is a lightweight Class 2 personal SRL-P designed for work all day, every day while providing comfort and reducing fatigue.
Features
- Ergonomic design keeps retractable units elevated on the back to reduce fatigue and maximize productivity
- Energy absorber cover includes comprehensive fall clearance charts and tables
- Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
- Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
- Rated for workers weighing up to 310 pounds, including clothes, tools, gear, etc.
- Complies with ANSI Z359.14-2021 Class 2 SRL-P.
Specifications
- Cable: 3/16" Galvanized steel; 3,600 lb min. static strength
- Energy Absorber: Polyester tear-away
- Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Dorsal Connector: Aluminum alloy; 3,600 lb min.
- Static Strength: 3,600 lb min.
- ANSI SRL Class/Type: Class 2 SRL-P
- Avg. Arrest Force: 1,350 lb max.
- Max. Arrest Force: 1,800 lb
- Max. Arrest Distance: 42"
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 310 lb max.
- OSHA 1926.502 and 1910.66
- ANSI Z359.14-2021
